It is safe to use your lawn mower with its safety switch intact. However, bypassing it can provide some additional benefits that are not widely known. And you can do this without wasting much.
However, how to bypass the safety switch on zero-turn mowers? It’s basically a 5 step process. Initially, you have to detach the power. Then locate the safety switch socket. After that, pull out the wire, cut it, and tape it together so it can stay disconnected. Although it has some advantages, disadvantaged are there too.
The process may differ depending on the type of safety switch, but if your mower has a safety switch, following the steps can make it easier to operate.
Why Do You Need to Bypass the Safety Switch on Zero Turn Mower?
The seat safety switch of lawnmowers is used for the safety of the rider and the mower. The safety switch underneath the mower’s seat allows the mower’s engine to start when the driver sits on the seat. This will activate the switch under the seat with the help of a spring which is pressed when the driver sits on the seat, and the engine will start.
If the safety switch is activated, and the driver somehow gets off the seat, the safety switch will turn off the engine which is annoying. Because getting off the seat for the time being while mowing is pretty normal.
So, to avoid the engine getting off due to such little facts, bypassing the safety switch is required for most of the users.
How To Bypass the Safety Switch On Zero Turn Mowers?
Bypassing lawn mower safety switch is not anything super technical. It can be done in a few minutes if you have the right guidance and tools. Here we will show you a very simple way to bypass the safety switch on zero turns.
The tools that will be required to complete this task
- Needle nose plier
- Diagonal cutting pliers
- Wire nuts
- Screwdriver
- Electrical tape
Step 1: Prework
Before working on your lawn mower,
- Ensure that it is on a level surface
- The engine is turned off
- Confirm that the steering lever is in parking mode
Step 2: Detach the battery
Because technical work is involved in this task, it is recommended to disconnect the power source before proceeding to avoid potential accidents. Typically, the battery on a lawn mower is located under the seat or side or back of the machine.
In most cases, you’ll find the battery under the seat. Once you have located the battery, look for the terminals. First, disconnect the negative terminal, and then the positive one.
Step 3: Locate the safety switch
Similar to the battery, the safety switch on your lawn mower is typically located under the seat. If your seat is removable, remove your lawn mower seat with the help of the necessary tools.
Underneath the seat, you should be able to locate a switch with a socket, which is typically the safety switch. However, if you do not find the safety switch under the seat, it may be located on the access panel or next to the shift lever.
It’s essential to check the owner’s manual or seek a qualified technician’s advice if you cannot locate the safety switch on your lawn mower.
You can watch out the following video on how to remove the mower seat.

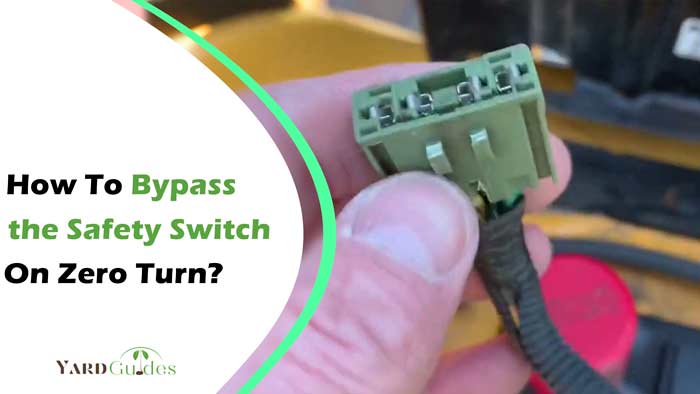

Step 4: Disconnect the safety switch socket wire
The safety switch socket on your lawn mower can be one of several types, including 2-wire, 3-wire, or 4-wire sockets. The number of wires in the socket will depend on the specific function of the safety switch.
To bypass the safety switch, you can use needle-nose pliers to pull the wires from the socket carefully.
Step 5: Tape the wires together after cutting them
- Once the wires are free, you can cut them from the socket using wire cutters
- It is important to use caution when cutting the wires to avoid damaging other components of the mower
- After the wires have been cut, it is recommended to tape them up to prevent them from making contact with other metal parts of the mower
- To prevent accidental contact, it is best to tape each wire individually, rather than taping them together
- You can use electrical tape to securely tape up the wires
The Drawbacks of Bypassing Lawn Mower Safety Switches
Bypassing the safety switch on a lawn mower can be dangerous, as it can lead to accidents or injuries.
The safety switch is designed to prevent the mower from operating under certain conditions, such as when the operator is not seated or when the blades are engaged. Bypassing the safety switch can also result in damage to the mower and can void any warranties.
Final Words
We hope this guide has given you a basic understanding of how to bypass safety switch on zero turn. While bypassing the safety switch on a lawn mower may seem like a straightforward process. But, it’s important to note that it involves some technical work and requires basic knowledge about lawnmowers and the right tools.
If you feel confident doing it yourself, you can save money by performing the task in your garage. However, it’s important to consider the potential risks involved and the fact that bypassing the safety switch can have more disadvantages than advantages.
